PPM-T9204 Explosion Proof Wireless Level Transmitter
Description
PPM-T9204 intelligent wireless liquid level transmitter is a high
energy lithium battery powered, intelligent instrument for liquid
level detection with wireless communication function. the
instrument uses silicon piezoresistance with stainless steel
isolation film as the pressure signal measuring element, pressure
and temperature signals are collected by 24-bit high-precision ADC,
the zero point and temperature performance compensation of the
transmitter in a wide temperature range are realized. support a
variety of wireless, 433,LORA,LORAWAN,GPRS,LTE,NB-IOT,WIFI etc. .
the man-machine interface uses a 1.3-inch low-power LCD screen,
operation display is convenient for application. the field of
application is liquid level monitoring in the field or in the
situation where the supporting power supply environment is
inconvenient, such as fire tanks, pools, wells, etc. , by means of
wireless communication, for long-distance wireless transmission of
signals, this simplifies the installation, it saves the wiring cost
of the customers, really achieve the goal of energy conservation
and environmental protection.
Standard Range
| Range | Unit |
| 0 ～ 1 | mH2O |
| 0 ～ 2 | mH2O |
| 0 ～ 5 | mH2O |
| 0 ～ 10 | mH2O |
| 0 ～ 20 | mH2O |
| 0 ～ 50 | mH2O |
| 0 ～ 100 | mH2O |
Performance Specifications
| PARAMETERS | VALUES |
| Accuracy (combined non linearity, hysteresis, and repeatability) | 0.25% |
| Zero temperature drift | ±0.03%FS/℃ |
| Full range temperature drift | ±0.03%FS/℃ |
| Long term stability (1 year) | ±0.25%Span |
| Pressure Overload | 1.5 full scale |
| Burst Pressure | 5x full range |
| Compensated Temperature | 0 ～ 55℃ |
| Operating Temperature | -40 ～ 60℃ |
| Storage temperature | -40 ～ 85℃ |
| Protection level | IP65 |
| Power supply | 3.6 v High Energy Lithium Ion battery |
| Display screen | OLED 1.3 inch ultra low power display |
| Transmit interval | 1MIN ～ 99999MINcan be set |

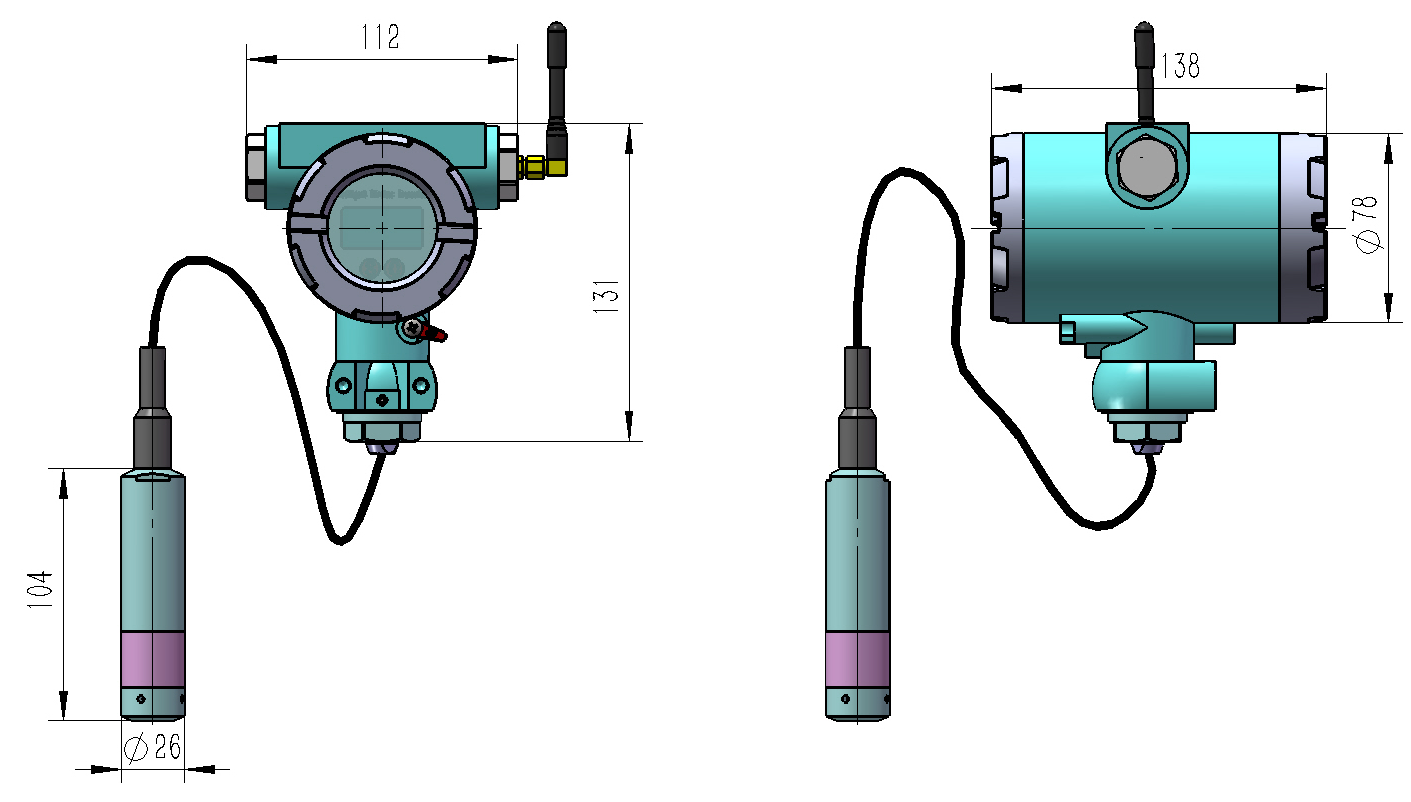

Dimension
Ordering Information
The selection code of the example is as follows:
| MODEL | [0-X] | H | G | CO | B6 | V4 | G |
| PPM-T9204 | Pressure range | Units | Output | Pressure Port | Connection | Power Supply | Type |
| [0-X] | H=mH2O
| G=GPRS L20=LORA(20dB) L30=LORA(30dB) M=433MHZ W=WIFI T=LTE N=NB-IOT A=LORAWAN | C1=M20X1.5 end face C6=G3/8 external thread C7=G1/2 external thread CX=Customized C0=none
| B6= external antenna B8= external sucker antenna
| V3= external adapter V4=built-in battery | G=gage A=absolute pressure
|
Example:PPM-T9204-[0-5]H-G-C0-B6-V3-G(PPM-T9204 Explosion proof
wireless level transmitter,Measuring 5 meters of water, Output:
GPRS,Interface level probe,Connection: external antenna,Power
Supply: built-in battery,gage)
- When selecting the type, please note that the medium to be tested
must be compatible with the part of the product in contact with the
medium.
2,When a transmitter with zero pressure is required, please
indicate the range when placing an order.
3,Special requirements, please consult with us, and indicate it in
the order form.
Installation Guide
PPM-T9204 intelligent wireless level transmitter probe can be
installed with flange bracket, the display can be installed with a
sheet metal bracket. when removing the instrument, do not apply
force to instrument case.regular replacement of pressure seal ring
is recommended, to make sure the transmitter works properly.
