0~60 MPa PPM-T336A Thermal Power Unit Pressure Transmitters
Product introduction:
PPM-T336A series pressure transmitter adopts sputtered thin film or
SOI silicon oil-filled sensor, fully welded and packaged in a
stainless steel housing, matched with temperature and pressure
compensation circuit module, and accurate piezoelectric conversion.
The product has high accuracy, long working life and is applicable
Wide temperature range, strong electromagnetic compatibility,
resistance to shock and vibration, low power consumption, no
hysteresis, good repeatability, lightness, etc., suitable for
measurement and control of hydraulic systems in harsh environments.
Applications:
Mainly used for oil pressure and hydraulic measurement and control
of tanks and
armored vehicles. Diesel engine, thermal power unit, steam turbine,
water turbine,
locomotive braking system.
Technical Parameters :
| Measured medium : | liquid, gas |
| Pressure type: | Gauge pressure(G) |
| Pressure Range : | 0~1.5 MPa, 0~2.5 MPa, 0~3 MPa, 0~6 MPa, 0~25 MPa, 0~60 MPa |
| Power supply : | 8-32VDC |
| Output Signal: | Zero position: 0.5 ± 0.025VDC Full scale: 5 ± 0.025VDC |
| Repeatability | 0.15％FS |
| Non-linearity: | ≤0.3% FS |
| Accuracy : | ± 0.5% FS (-43 ℃ ～ + 125 ℃) |
| Long-term stability | 0.15% FS / year |
| Working medium temperature | -43 ℃ ～ +125 ℃ |
| Working Ambient temperature | -43 ℃ ～ 125 ℃ |
| Process connections : | M12 × 1-6g, M14 × 1.5-6g Other customized |
| Wetted material | 316 stainless steel |
| Electrical Connection : | Aviation connector |
| Environment: | Meets the requirements of National Military Standard 150 |
Note: The above technical indicators and test specifications can be
customized according to specific requirements.
Definition of wiring:
| Direct outgoing | Aviation connector |
| 2-wire system | 3-wire system | | 2-wire system | 3-wire system |
| Power supply | red | red |  | Power supply | 1 | 1 |
| Negative power | black | black | Negative power | 2 | 2 |
| Signal positive | 一 | green | Signal positive | 一 | 3 |

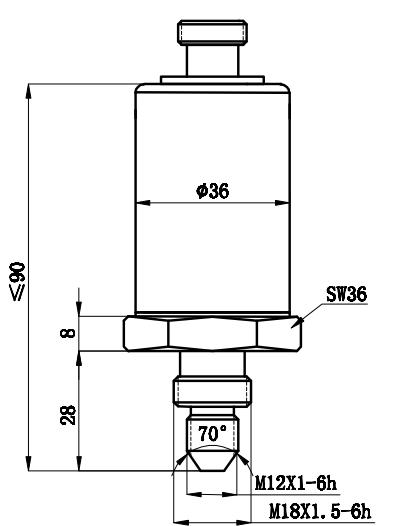

Dimensions in mm :
