CSPPM 100MPa Pressure Transmitter Sensor Digital Pressure Gauge

0 ~ 100MPa PPM-S315A Digital Pressure Gauges Pressure Sensor

Product Introduction:

PPM-S315A high temperature pressure sensor sensitive chip is made using ion sputtering thin film technology. The product adopts stainless steel structure and laser welding to seal the pressure. It has small dimensions, high accuracy, stable and reliable performance, high and low temperature resistance, and long-term anti-stress fatigue Life characteristics. Special shapes can be customized.

Applications :

Oil drilling, logging, well testing, downhole instruments, digital pressure gauges, aerospace engine testing, chariot engines, hydraulics, marine and shipbuilding.

Technical Parameters :

Measured medium :	gas liquid and steam
Pressure Type :	Ventilation Gauge Pressure, Differential Pressure
Pressure Range:	0 ~ 2MPa, 6MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa
Power supply :	5-10VDC
Output signal :	1.8 ± 0.2mV / V, 4 ± 0.5mV / V
Electrical interface:	direct outgoing
Repeatability :	0.04% FS
Accuracy:	0.1% FS, 0.25% FS
Long-term stability :	≤ ± 0.1% FS / year
Working medium temperature :	-40 ~ + 150 ℃
Working environment temperature :	-40 ~ + 150 ℃

Definition of wiring:

Direct outgoing
		Cable color
	Power supply	red
	Negative power	black
	Signal positive	green
	Signal negative	white

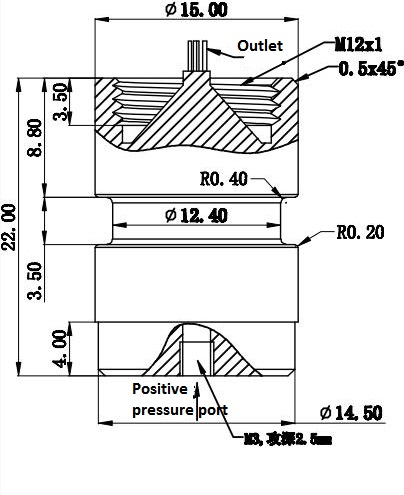

Dimensions in mm :
