PPM-WZP PT100 Anti Vibration Temperature Transmitter

Ask Lasest Price
Brand Name :	CSPPM
Model Number :	PPM-WZP
Certification :	CE
Payment Terms :	Western Union

Add to Cart

Product Details
Company Profile

PPM-WZP PT100 Anti Vibration Temperature Transmitter

PPM-WZP Temperature Transmitter sensor with PT100, PT1000

Product introduction:

PPM-WZP temperature sensor has the advantages of anti-vibration, bendability, fast temperature measurement, high pressure resistance, light weight, fast temperature measurement, etc. It is suitable for occasions with small space or vibration. It can directly measure the temperature of liquid, steam and gas medium and solid surface in the range of -200 ℃ -1200 ℃ in various production processes.

Applications

Petroleum, chemical, metallurgy

Machinery, electricity, steel

Technical Parameters :

Measuring range :	Pt100:-50～+600℃ ,Pt1000:-200℃～+200℃ T, K: -200℃～+1200℃
Accuracy:	Level A, B optional
Working ambient temperature:	-40℃ ～ 85 ℃
Ambient temperature effect:	0.25%/ 10℃
Temperature measuring element:	Pt100, Pt1000, T,K are optional
Protection tube diameter	Ф4 ～ Ф16, Ф18, Ф20, Ф22, Ф28, Ф35, Ф40 or specified
Process connection:	No fixing device, fixed thread, movable thread, movable flange, fixed flange GB / ANSI standard are optional
Insertion length:	50, 100, 150, 200, 300, 400, 500, 750, 1000 or specified
Protection tube material:	1Cr18Ni9Ti, ceramic, high alumina or steel jade tube
Nominal pressure:	≤20MPa, ≤10MPa, ≤4.0MPa, ≤2.5MPa, normal pressure optional
Protection class:	IP65
Thermal response time	0.3s
Ambient humidity	95% RH, non-condensing

Definition of wiring:

	Thermal resistance			Thermocouple
	2-wire system	3-wire system	4-wire system
Red	●	●	●	●
Black	●	●	●	●
Green	—	—	●	—
White	—	●	●	—

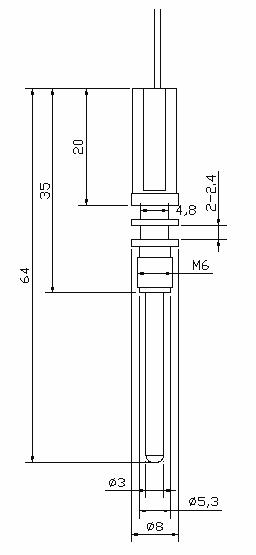

Dimensions in mm :
