0 ～ 0.6MPa… 300MPa PPM-T330A Heat Generating Unit Pressure
Transmitter
Product Introduction:
PPM-T330A Sputtered Film High Temperature Pressure Transmitter uses
ion beam sputtered film technology, all stainless steel integrated
structure, high sensitivity pressure core, fully welded and sealed
in stainless steel housing, withstands frequent, 5 times pressure
overload and accurate High temperature and wide temperature range,
mainly used in high-end industrial sites and military equipment.
With low power consumption, no hysteresis, good repeatability and
so on. This series supports full parameter customization service
Applications :
Engine, diesel engine, heat generating unit, steam turbine, water
turbine, locomotive braking system Oilfield oil well instruments,
oilfield pressure gauges, downhole instruments, uphole platforms
Laboratory pressure calibration, flow regulation system,
energy management system Hydraulic machine, testing machine, crane
hydraulic system, cylinder hydraulic pressure.
Technical Parameters :
| Measured medium : | gas, liquid and steam |
| Pressure Type : | Sealed Reference Pressure, Ventilator Pressure, Absolute Pressure
(Customized) |
| Pressure Range: | Any range between 0 ～ 0.6MPa… 300MPa |
| Power supply : | 9-32VDC (24VDC recommended) |
| Output signal : | 4 ～ 20mA, 0 ～ 5VDC, 1 ～ 5VDC, 0 ～ 10VDC, 0.5 ～ 4.5 VDC can be
selected |
| Mounting thread : | M20 × 1.5, M14 × 1.5, G1 / 4, 1 / 4NPT, 1 / 2NPT |
| Electrical interface: | Hirschmann connector, aerial plug, direct outlet |
| Non-linearity : | ≤0.05% FS optional |
| Repeatability : | ≤0.05% FS optional |
| Accuracy: | ± 0.1% FS, ± 0.2% FS, ± 0.5% FS optional |
| Long-term stability : | 0.1% FS / year |
| Working medium temperature : | -45 ～ + 145 ℃ 250 ℃ customized |
| Working environment temperature : | -55 ～ + 145 ℃ |
Definition of wiring:
| Hirschmann Connector |
| 2-wire system | 3-wire system |
 | Power supply | 1 | 1 |
| Negative power | 2 | 2 |
| Signal positive | 一 | 3 |
| Direct outgoing |
| 2-wire system | 3-wire system |
 | Power supply | red | red |
| Negative power | black | black |
| Signal positive | 一 | green |

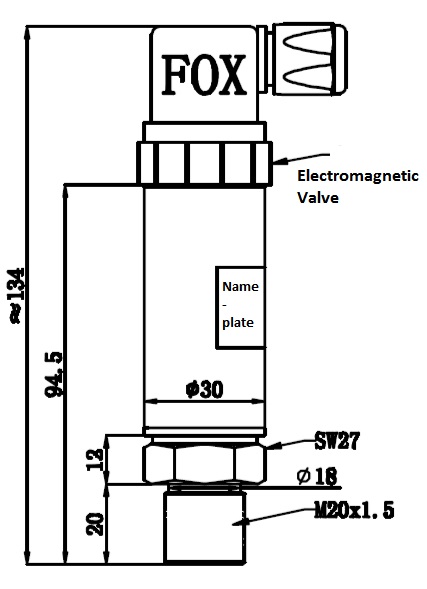

Dimensions in mm :
