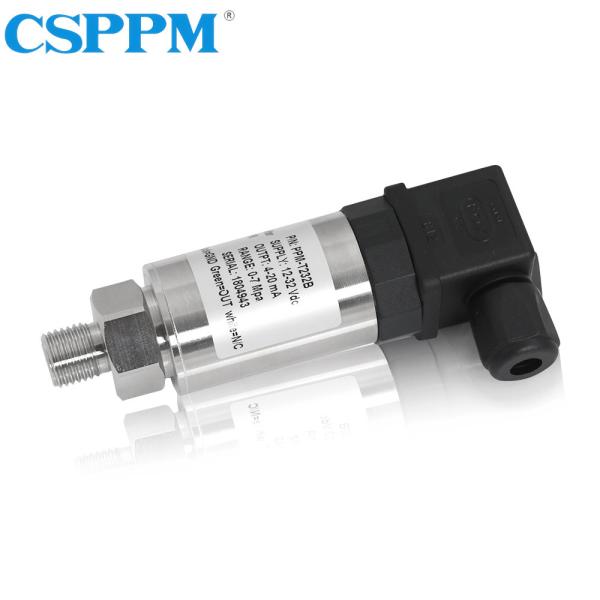

PPM-T232B Pressure Transmitter for Oil Field
Description
Pressure Transmitter PPM-T232B is designed for solid liquid mixture
and Viscidity Liquid pressure measurement. The diaphragm adopts
high strength stainless steel, it has a good resistance to impact
from solid particle. The PPM-T232B has wide pressure ranges up to
150 MPa, and offers an accuracy of 0.5%FS or 0.2 %FS. Various
output signals are available, such as 4-20 mA, 1-5 VDC, 0-10 VDC
and so on.
Features
1. High strength stainless steel diaphragm.
2. Wide pressure ranges from 0~1 MPa to 0~150 Mpa.
3. Wide operation temperature from -40~+80 ℃ to -40~-150℃.
4. Various output signals: 4-20 mA, 1-5 VDC, 0-5 VDC, 0-10 VDC.
5. conical surface sealing structure.
Applications
1. Oil and chemical industry
2. Paint inspection system
3. Solid liquid mixture and Viscidity Liquid pressure measurement.
Specifications
| Measuring medium | Gas, liquid, Viscidity Liquid, Solid Liquid mixture |
| Pressure type | Gauge pressure(G), Sealed pressure(S) |
| Measuring range | 0～1MPa…10MPa…150MPa |
| Power supply | 24VDC(12-32VDC) |
| Output signal | 4-20mA, 1-5VDC,0-5VDC,0-10VDC |
| Response frequency | 1.5kHz |
| Non-linearity | 0.05%FS |
| Repeatability | 0.05%FS |
| Accuracy | 0.1%FS,0.2%FS,0.5% FS optional |
| Long-term stability | 0.2%FS/year |
| Operation Temp. | -40～85℃/125℃/150℃ |
| Insulation resistance | ≥500 MΩ/200VDC |
| Over-pressure | 150%FS (1.5 times FS) |
| Damage pressure | 300%FS (3 times FS) |
| Process connection | M20×1.5, 1/2NPT or others on request |
| Wetted parts materials | Diaphragm:17-4PH stainless steel,316L stainless steel；Process
connection:1Cr18Ni9Ti |
| Humidity | 0～95% RH |
| Ingress protection | IP65 |
| Electric connection | L-connector |
