PPM-A Aircraft Space Attitude Measurement Angle Sensor
Product introduction
It is a high-performance angle measuring sensor that can measure
the angle and angular velocity of an object in space in real time.
The sensor integrates a high-speed solution unit with multi-sensor
fusion algorithm, which is specially designed for high-speed motion
measurement. It has a very high response speed, can quickly and
accurately measure the angular change of objects in motion, and has
good anti-disturbance measurement. ability. The aluminum alloy
housing, IP67 rated, allows it to maintain high reliability in most
harsh construction environments. Excellent EMC index, withstand
4000V lightning strikes, 24 hours 50V voltage shock, to ensure
long-term reliability of the product. Including three-axis,
two-axis, three-axis products.
Applications
Aircraft space attitude measurement, vehicle chassis horizontal
attitude measurement, construction machinery attitude measurement,
Attitude measurement of aerial work platform, attitude measurement
of manipulator fire truck boom, four wheel alignment system,
Radar, satellite communication antenna, solar photovoltaic
tracking, Laser level, tracking measurement and train control
system, Offshore equipment, onboard tracking gimbal.
Technical Parameters
| Single axis | Double axis | Triaxial |
Roll(X) Roll angle accuracy | 0.1° static 0.5° dynamic | 0.1° static 0.5° dynamic | 0.1° static 0.5° dynamic |
Pitch(Y) Pitch angle accuracy | - | 0.1° static 0.5° dynamic | 0.1° static 0.5° dynamic |
Yaw(Z) Azimuth accuracy | - | - | 0.5° static 1° dynamic |
| Resolution | 0.05° | 0.05° | 0.05° |
| Nonlinear | ±0.05% fs | ±0.05% fs | ±0.05% fs roll/pitch ±0.2% fs heading |
| Angle range | ±180° | ±180° roll ±90° pitch | ±180° roll/yaw ±90° pitch |
| Angular velocity range | ±2000°/s | ±2000°/s | ±2000°/s |
| Sampling Rate | 500hz | 500hz | 500hz |
| Output bandwidth | 20hz | 20hz | 20hz |
| Output rate | 100hz | 100hz | 100hz |
| Data content | Euler angle, horizontal angle, dihedral angle, angular velocity |
| Serial interface | RS485 support Modbus |
| CAN interface | CAN 2.0B,Maximum configurable 1Mbps,support CANopen |
| Analog output interface | AO 4-20mA |
| Operating temperature | -40 to 70℃ |
| Vibration environment | vibration:7g,10~1000hz； Shock:50g@11msHalf sine wave |
| Protection level | IP67 |
| Operating Voltage | 9V – 33V |
| Power consumption | 300mW, 12mA@24V |
| Start Time | < 0.5 s |
| Transient protection | ESD: 8kv IEC Contact, 12kV HBM; Surge: 4kV; EFT: 4kV. Power terminal |

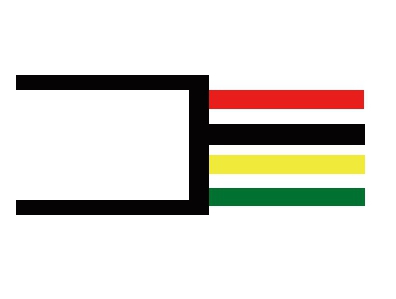

Wiring definition
| M12 A-coded Public seat | Direct outlet |
| Power supply | 2 |
| Power supply | red |
| Negative power supply | 3 | Negative power supply | Black |
| Positive signal | 4 | Positive signal | Yellow |
| Negative signal | 5 | Negative signal | Green |
| shield | 1 | shield | - |
Dimension:
