PPM-WZP-241L-B Explosion Proof Temperature Transmitter

Ask Lasest Price
Brand Name :	CSPPM
Model Number :	PPM-WZP-241L-B
Certification :	CE
Payment Terms :	Western Union, T/T, L/C

Add to Cart

Product Details
Company Profile

PPM-WZP-241L-B Explosion Proof Temperature Transmitter

PPM-WZP-241L-B Explosion-proof Temperature Sensor

Product introduction:

PPM-WZP-241L-B temperature transmitter organically integrates temperature sensing element (thermal resistance or thermocouple) and signal conversion and amplification unit to measure liquids in the range of -200-650 ℃ in various processes , Steam and other gaseous medium or solid surface temperature. It has the characteristics of simple structure, convenient installation, use and maintenance.

Applications

Petroleum, chemical, metallurgy

Machinery, electricity, steel

Technical Parameters :

Measuring range :	-200 ～ 650 ℃
Power supply:	12-32VDC
Output signal:	4-20mA, 0-5VDC, 0-10VDC, 0-10VDC optional
Accuracy:	0.2%, 0.5% optional
Working ambient temperature:	-40℃ ～ 85 ℃
Ambient temperature effect:	0.25%/ 10℃
Temperature measuring element:	Pt100, Pt1000, T,K are optional
Protection tube diameter:	Ф4 ～ Ф16, Ф18, Ф20, Ф22, Ф28, Ф35, Ф40 or specified
Process connection:	No fixing device, fixed thread, movable thread, movable flange, fixed flange GB / ANSI standard are optional
Insertion length:	50, 100, 150, 200, 300, 400, 500, 750, 1000 or specified
Protection tube material:	316L stainless steel, nickel alloy optional
Nominal pressure:	≤20MPa, ≤10MPa, ≤4.0MPa, ≤2.5MPa, normal pressure optional
Protection class:	IP65
Thermal response time	0.3s
Ambient humidity	95% RH, non-condensing

Definition of wiring:

Direct outgoing
		2-wire system	3-wire system
	Power supply	red	red
	Negative power	black	black
	Signal positive	一	green

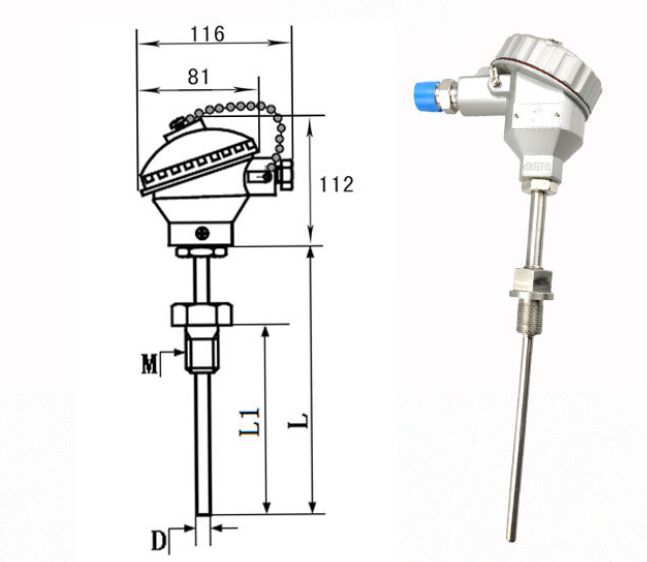

Dimensions in mm :
