CSPPM High Accuracy Cylinder Load Cell 10V DC Electrical Load Cell

Ask Lasest Price
Brand Name :	CSPPM
Model Number :	PPM226-LS2-1
Payment Terms :	L/C, T/T
Supply Ability :	1000 pcs per month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

CSPPM High Accuracy Cylinder Load Cell 10V DC Electrical Load Cell

Column Cylinder Type Load Cell

Description
PPM226-LS2-3 load cells are available in the capacities from 0.3t to 100t. Rugged all steel construction and high performance strain gauges assure superior linearity and stability. Temperature compensation is achieved through a miniature circuit board in the cable. It features high accuracy and strong character of anti deviated load.

PPM226-LS3-3 load cells are suitable for Electronic Weighing Instrument, Lifting equipment,Crane scale, Force measurement and control.

Specification

Capability	0.1~200 t
Comprehensive precision	0.03%FS or 0.05%FS
Sensitivity	1.5~2.0 mV/V
Creep	±0.02%FS/30min
Zero Output	±1%FS
Temperature effect on zero	±0.05%FS/10ºC
Temperature effect on output	±0.05%FS/10ºC
Operating temperature range	-20ºC~+65ºC
Input resistance	380±10Ω
Output resistance	350±3Ω
Insulation resistance	>5000MΩ
Safe overload	150%FS
Bridge voltage	10V DC
Material	Alloy steel
Protection class	IP 65
Electronic connection	Input+: Red Input-:Black Output+: Green Output-:White

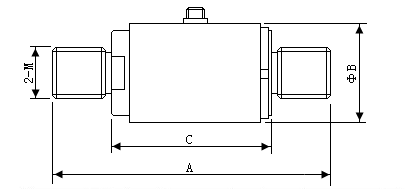

Dimensions: mm

Capacity	Dimensions
t	A	B	C	M
0.1~1.5	120	59	80	M16
2~5	160	75	98	M24
7~10	200	86	136	M30
10~20	214	82~86	124	M42*4.5
30~50	276	106	157	M56*5.5
70~100	380	142	180	M76*4
150~200	500	175	220	M130*6
