PPM231-TY02 Column 200t Load Cell

Ask Lasest Price
Brand Name :	CSPPM
Model Number :	PPM231-TY02
Payment Terms :	L/C, T/T
Supply Ability :	1000 pcs per month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

PPM231-TY02 Column 200t Load Cell

Column Load Cell Senor

Description

PPM230-TY02 load cells are available in the capacities from 0.2t to 200t. Rugged all Alloy construction and high performance strain gauges assure superior linearity and stability. Temperature compensation is achieved through a miniature circuit board in the cable. It features high accuracy and strong character of anti deviated load. It could be applied in hazard area.

PPM230-TY02 load cells are suitable for truck scale, Storage scale, Tank scale, Hopper scale and other large tonnage measurement.

Specification

Rated Load	0.2t, 0.3t, 0.5t, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 200t
Comprehensive precision	0.05FS
Sensitivity	2mV/V
Creep	±0.05%FS/30min
Zero Output	±1%FS
Temperature effect on zero	±0.05%FS/10ºC
Temperature effect on output	±0.05%FS/10ºC
Operating temperature range	-20ºC~+65ºC
Input resistance	380±10Ω
Output resistance	350±3Ω
Insulation resistance	>5000MΩ
Safe overload	150%FS
Bridge voltage	10V DC
Material	Alloy steel
Ingress protection	IP65
Electronic connection	Input+: Red Input-:Black Output+: Green Output-:White

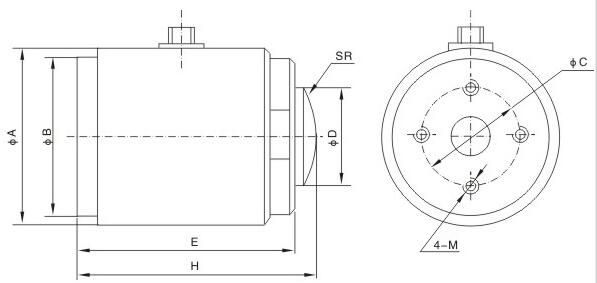

Dimensions: mm

Measuring range(t)	Dimension (mm)
Measuring range(t)	ΦA	ΦB	ΦC	H	E	M	SR	D
0.2~0.7	59	52	30	88	79	5	35	20
1~5	74	68	38	100	91	6	65	28
7~10	86	78	56	130	120	8	85	32
15~30	86	78	56	140	129	10	200	40
40~60	100	92	68	150	133	12	350	80
100	107	98	68	170	156	16	500	80
150~200	158	148	100	220	201	16	1000	120
