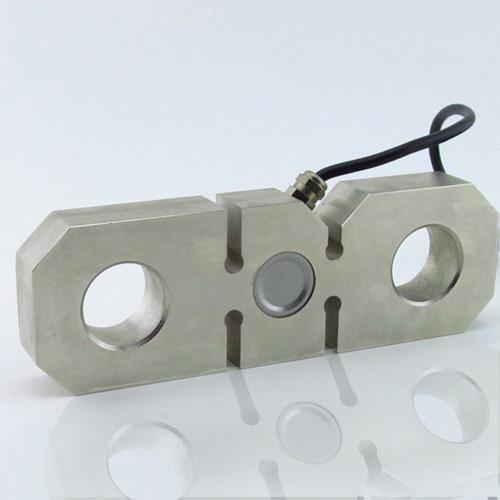

PPM325-DG-2 100t Crane Scale Load Cell

Load Cell for Crane Scale

Description

PPM325-DG-1 load cells are available in the capacities from 2t to 100t. Rugged all alloy steel construction and high performance strain gauges assure superior linearity and stability.

PPM325-DG-1 load cells are suitable for crane scale, hook scale and other electronic weighing devices.

Specification

Capability	2~100 t
Comprehensive precision	0.03%FS
Sensitivity	2 mV/V
Creep	±0.02%FS/30min
Zero Output	±1%FS
Temperature effect on zero	±0.02%FS/10ºC
Temperature effect on output	±0.02%FS/10ºC
Operating temperature range	-20ºC~+65ºC
Input resistance	380±10Ω
Output resistance	350±3Ω
Insulation resistance	>5000MΩ
Safe overload	150%FS
Bridge voltage	10V DC
Material	Alloy steel
Electronic connection	Input+: Red Input-:Black Output+: Green Output-:White

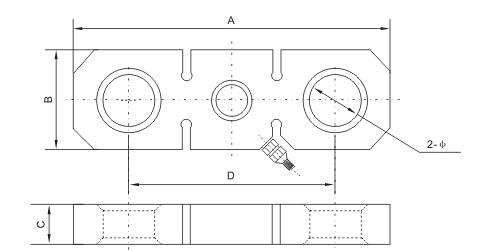

Dimensions: mm

Capacity	Dimensions
t	A	B	C	D	Φ
2~3	200	65	25	130	32
5	230	70	30	150	36
7~10	300	90	38	200	45
15~20	330	110	42	205	60
30	350	126	50	216	60
50~70	500	180	60	320	72
