Product Introduction:

The product with high-quality steel and high-precision resistance strain gauges, it's processed by high-low temperature aging and thousands of times of pressure fatigue test to produce a mV signal output sensor. Stable output, strong anti-interference ability, Fast response (response time <2ms) Ingress protection IP65 .

Described from several aspects:

A:Material of Housing#45steel/304 stainless steel

B:Axle pin material,40CrNiMo

C:High stability, low temperature of product

D:Electrical connections, Aviation connector/Direct outlet, Ingress protection IP65

Applications :

Wire measuring the tension of thin wire and thin cable materials,

suitable for all kinds of stranding machines, equipment, cutting equipment sensors.

Technical Parameters :

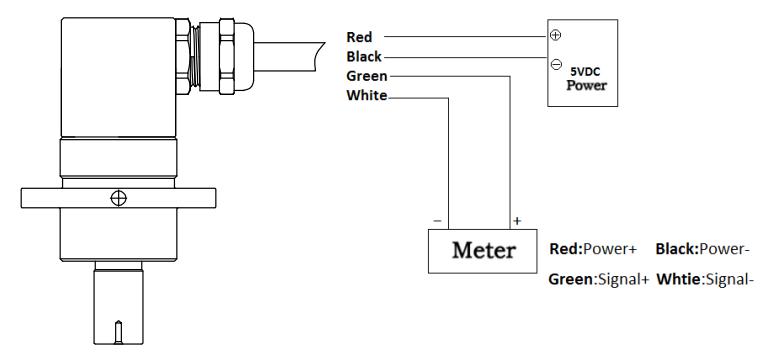

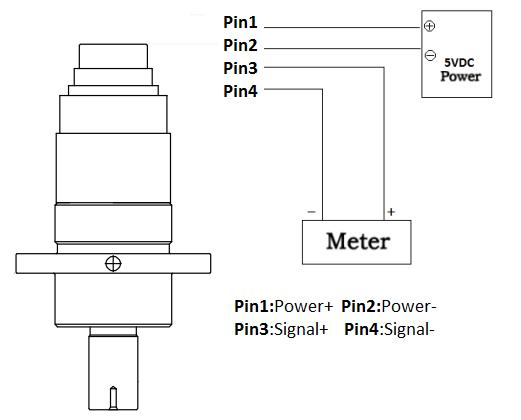

Definition of wiring:

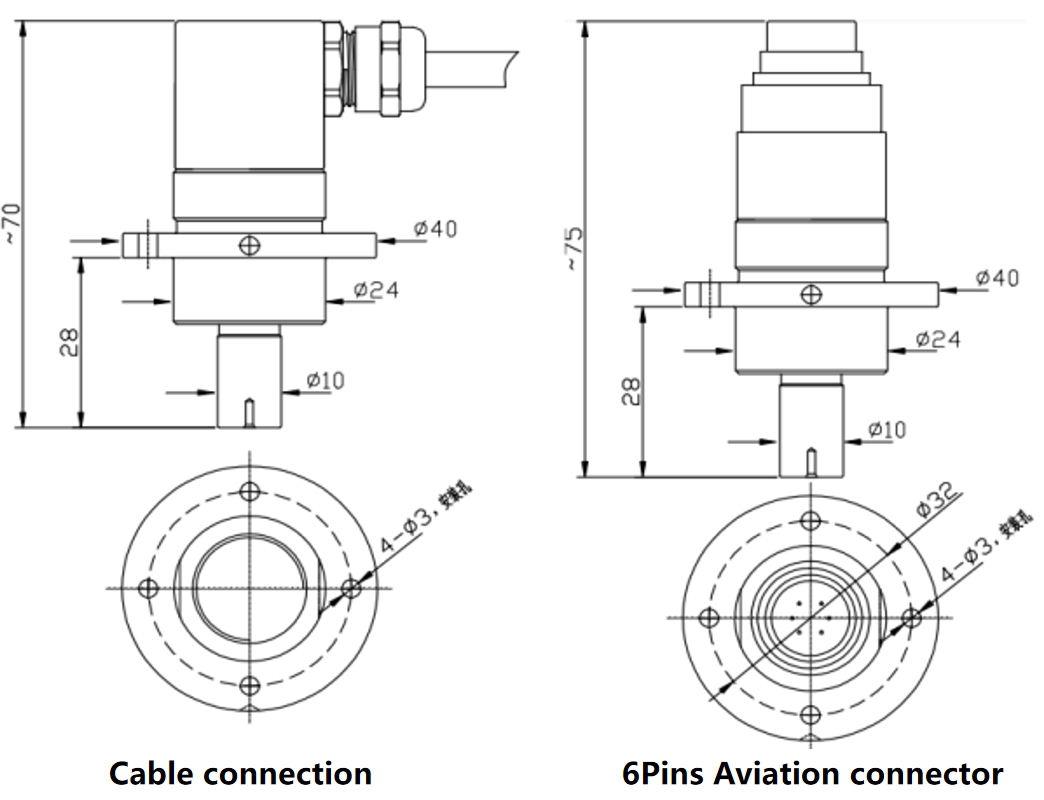

Dimensions in mm :
