Industrial Digital T126A 24VDC Economical Pressure Transducer
Product Introduction:
The PPM-T126 series uses high-performance imported
pressure-sensitive components that are packaged and compensated by
MEMS. It adopts an integrated stainless steel fully-sealed
structure. It has a small size, strong overload resistance, high
stability, good corrosion resistance, reliable performance, and
long life. It is suitable for needs. Detection and control of small
fluid pressures. Available in gauge, absolute and negative
pressure. The user can freely select the range.
Applications :
Widely used in military equipment, meteorology, hydrological
exploration, kiln, medical, petroleum, chemical, power plant,
mining, urban water supply, plastic and glass industry blow molding
machines, flow control and other industries, Areas where on-site
pressure needs to be monitored and controlled.
Technical Parameters :
| Measured medium: | Liquid, gas, steam and other media compatible with 316L stainless
steel and silicon (non-corrosive stainless steel) |
| Pressure type: | Gauge, absolute, negative pressure optional |
| Pressure Range: | 0～1kPa,2kPa,5kPa,10kPa,20kPa,30kPa,40kPa,50kPa,100kPa,150kPa,200kPa,300kPa,400kPa,500kPa,700kPa,1MPa,1.5MPa,2MPa,3MPa,5MPa,6MPa,7MPa,10MPa,15MPa,20MPa |
| Power supply: | 12～36VDC |
| Signal output: | 4 ～ 20mA two-wire system, 0 ～ 5VDC, 1 ～ 5VDC, 0 ～ 10VDC, 0.5 ～
4.5VDC three wire system |
| Repeatability: | 0.1% FS |
| Accuracy: | 0.5% FS; (0.2% FS can be selected) (including non-linear,
repetitive, hysteresis) |
| Long-term stability: | ≤ ± 0.2% FS / year (typical value) |
| Working medium temperature: | -30℃～+85℃ |
| Working environment temperature: | -30℃～+85℃ |
| Connection method: | M20 × 1.5, M14 × 1.5, M12 × 1, G1 / 4, G1 / 2, 1 / 4NPT or
customized |
| Electrical interface: | Hirschmann, M12 connector, direct outlet, aviation plug |
Definition of wiring:

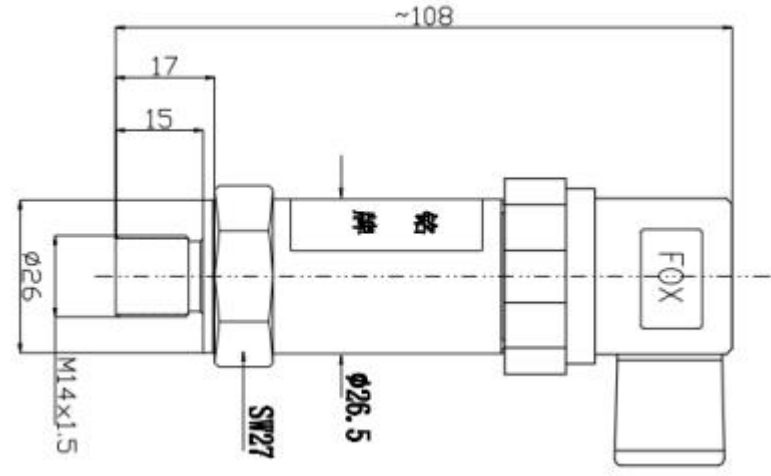

Dimensions in mm :
