Brand Name : | CSPPM |
Model Number : | PPM-YB-3000 |
Certification : | CE |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 1000 pcs per month |
Delivery Time : | 5-8 working days |
Product Introduction:

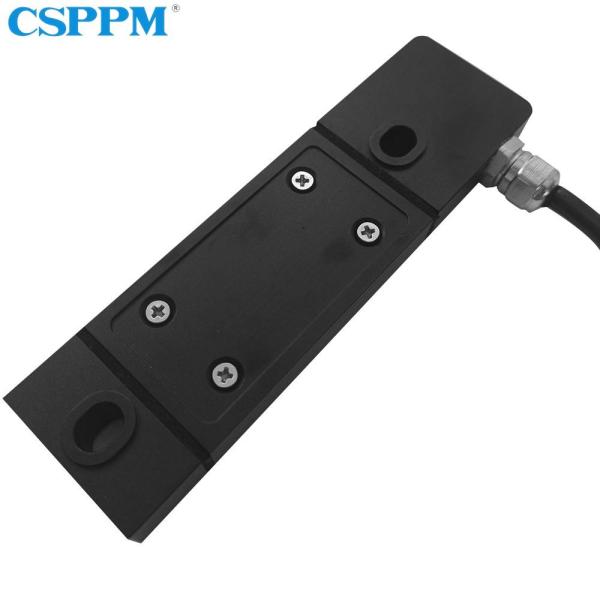

PPM-YB-3000 was designed for measuring of dynamic or static surface
strain on stiff steel constructures. The Strain transducer is
screwed on the component making a positive connection between the
extensometer and the object. Under mechanical stress on the target
construction caused strains and sprains. The sensor is simply
srewed onto the component and convert the deformation on the fix
platen, which is proportional to the length change, into an
electrical output signal.
The strain transmitter have stainless steel construction and meets
the requirements of protection class IP65. The strain transducer
has been designed for applications in which there is a need to
measure the deformation due to external forces acting on an
existing component. Due to the small space requirements and the
easy installation, PPM-YB-3000 are ideal for retrofitting a force
measurement and load monitoring
Typical Application:
Technical Parameters :
Measuring type | Micro strain, linear deformation |
Measuring range | ±3000με |
Power supply | 5VDC |
Output signal | mv |
Nonlinearity | ≦0.015%FS |
Repeatability | ≦0.02%FS |
Accuracy | Accuracy error:≤2%FS |
Long-term stability | ≦0.5%FS/Year |
Operation temp | -25℃—85℃ |
Zero temp. drift | ≦0.3%FS |
FS temp. drift | ≦0.3%FS |
Response time | <3ms |
Output impedance | 1KΩ |
Insulation resistance | >1000MΩ/100VDC |
Overpressure | 120%FS |
Damage pressure | >300FS |
Materials | 7075Aluminium Alloy |
Ingress protection | IP65 |
Electrical connections | Cable connection |
Definition of wiring:
Dimensions in mm :
![]() |
