China Manufacturer PPM-T9201 Explosion Proof Medium And High
Pressure Wireless Pressure Transmitter
Description
PPM-T9201 explosion-proof medium and high voltage wireless pressure
transmitter is a high-energy lithium battery powered pressure
detection intelligent instrument with wireless communication
function.The instrument uses the micro melting pressure sensor as
the pressure signal measuring element, and uses 24 bit
high-precision AD converter to collect the pressure and temperature
signals, so as to realize the zero point and temperature
performance compensation of the transmitter in a wide temperature
range.It is characterized by stainless steel single piece
integrated structure, no O-ring, no weld, no silicone oil, wide
pressure range, adaptability to harsh environment, wide range
coverage, and strong overload capacity.Support a variety of
wireless: 433, Lora, lorawan, GPRS, LTE, nbiot, WiFi, etc.The
man-machine interface adopts a 1.3-inch low-power LCD screen, which
is easy to operate and display.The application fields are natural
gas, petrochemical industry, fire control, tap water, industrial
monitoring system, etc. through wireless communication, the signal
remote wireless transmission is realized, thus simplifying the
installation mode, saving the wiring cost of customers, and truly
achieving the purpose of energy conservation and environmental
protection.
PPM-T9201 explosion-proof medium and high pressure wireless
pressure transmitter, the product technical conditions and
verification methods conform to gb3836.1-2010 "explosive
environment Part 1 General requirements for equipment" and
gb3836.2-2010 "explosive environment Part 2 equipment protected by
flameproof enclosure" d ".
PPM-T9201 explosion-proof medium and high pressure wireless
pressure transmitter has passed the examination of explosion-proof
product inspection organization designated by the state and issued
"explosion proof certificate", with explosion-proof mark Exd Ⅱ C T6
GB.
Performance Specifications
| PARAMETERS | VALUES |
| measuring range | 0~ 1MPa...0 ~ 300mpa (optional) |
| Accuracy (including nonlinearity, hysteresis and repeatability) | 0.5% |
| Zero temperature drift | ±0.03%FS/℃ |
| Full range temperature drift | ±0.03%FS/℃ |
| Long term stability (1 year) | + 0.25%Span |
| Absolute source impedance (250VDC) | 50M Omega |
| Overload pressure | 1.5Double full range |
| Destructive pressure | 5Double full range |
| Compensation temperature | -20 ~ 85 C |
| working temperature | -40 ~ 85 C |
| Storage temperature | -40 ~ 85 C |
| Protection level | IP65 |
| Power supply | 3.6V high energy lithium battery |
| Display | OLED 1.3-inch ultra low power display |
| Sending interval | 1min ～ 9999min can be set |

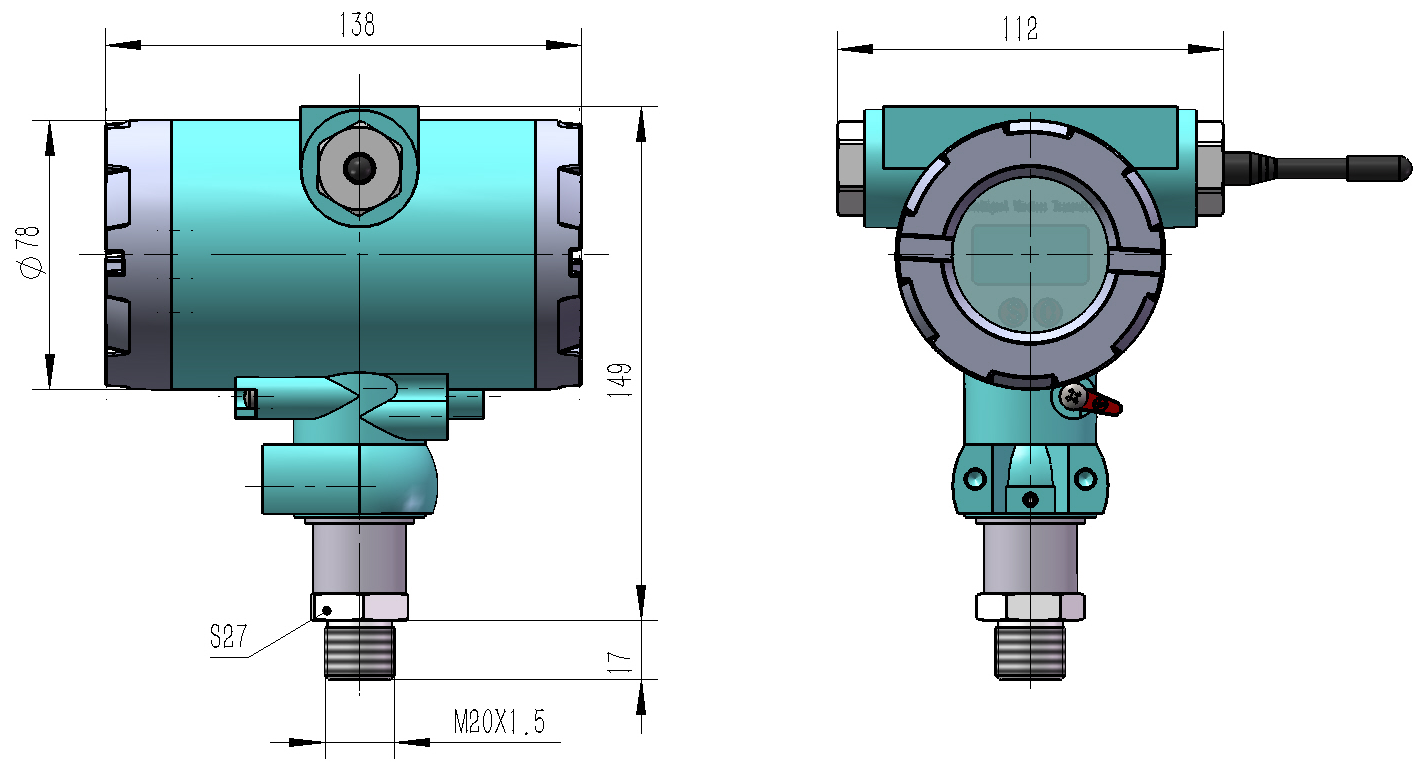

Dimensions
Ordering Information
The model selection code of the example is as follows:
| MODEL | [0-X] | M | B | C5 | B7 | V4 | G |
| PPM-T9201 | Range | Unit code | type of output | Pressure interface | Entry cable | Power supply mode | Pressure type |
| [0-X] | P=Pa K=Kpa M=Mpa B=Bar S=Psi
| G=GPRS L20=LORA(20dB) L30=LORA(30dB) M=433MHZ W=WIFI T=LTE N=NB-IOT A=LORAWAN | C1 = m20x1.5 end face C2 = m20x1.5 water line C5 = G1 / 4 external thread C6 = G3 / 8 external thread C7 = G1 / 2 external thread C11=NPT1/4 C12=NPT1/2 Cx= customization | B6 = external antenna B8 = external suction cup antenna | V3 = external adapter V4 = built in battery | G= gauge pressure
|
Examples: PPM-T9201-[0-1]M-G-C1-B6-V4-G (PPM-T9201 explosion-proof
medium-high voltage wireless pressure transmitter; Pressure Range
0-1 MPA; output gprs; threaded interface M20 * 1.5; External
Antenna; built-in Battery Power Supply; gauge pressure)
Note: for special requirements, please contact the manufacturer.
1.Please note that the tested medium shall be compatible with the
part contacting the product and the medium.
2.When the transmitter with zero pressure and negative pressure is
required, please indicate the range when ordering.
3.For special requirements, please consult with our company and
indicate in the order.
Installation Guide
PPM-T9201 series intelligent economy PPM-T9201 explosion-proof
intelligent wireless pressure transmitter can be directly installed
on the hydraulic pipeline through the pressure pipe joint.In
critical applications (such as severe vibration or shock), pressure
pipe joints can be mechanically decoupled by means of micro
hoses.If the micro hose is used for installation, the shell must be
grounded separately.When the instrument is connected to the power
supply, it shall operate according to the electrical connection.
After confirming that the operation is correct, it can be connected
to the power supply for operation.Do not apply force to the
instrument housing when removing the instrument.It is not allowed
to replace components or structures, so as not to affect the
explosion-proof performance.It is recommended to replace the
compression seal ring regularly to ensure reliable operation of the
transmitter.
